| CLW5030ZXX4 Model technical parameters | |||
| Name: | CLW5030ZXX4 | Exterior size(mm): | 4570,4330×1600×2050 |
| Chassis: | DFA1030SJ40D3-KM | Container size(mm): | ×× |
| Total weight :(kg) | 3450 | Approach angle/ Departure angle(° ) | 35/21 |
| Payload:(kg) | 1500 | Front suspension/rear suspension(mm): | 870/900 |
| Kerb Mass:(kg) | 1820(Kg) | Max Speed(km/h): | 86 |
| Chassis parameters | |||
| Chassis: | DFA1030SJ40D3-KM | Axle weight: | 1380/2070 |
| Number of axles: | 2 | Fuel Type: | Diesel fuel |
| Wheelbase(mm): | 2560,2800 | Fronttread(mm): | 1285 |
| Max people in cab: | 2 | Rear tread(mm): | 1185 |
| Number of tires: | 6 | Number of spring axle: | 3/5,3/6 |
| Tire Type: | 6.00-13 8PR,6.00R13 8PR 6.00-14 8PR,6.00R14 8PR | ||
| introduction: | 整车长/轴距对应关系为:4570/2800,4330/2560。油耗对应关系(L/100km):SD4AW504U油耗为8.44,4DW93-78E4油耗为8.49,4L22CF油耗为8.41。 | ||
| Engine parameters | |||
| Type | Manufacturer | Displacement(ml) | Power(kw) |
| SD4AW504U 4DW93-78E4 4L22CF |
江苏四达动力机械集团有限公司 一汽解放汽车有限公司无锡柴油机厂 山东华源莱动内燃机有限公司 |
2270 2540 2156 |
50 59 60 |
| other parameters |
| Introduction: |

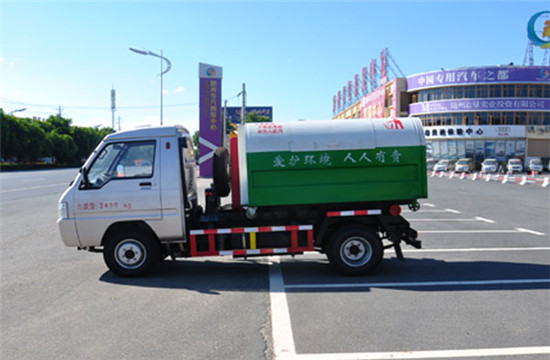

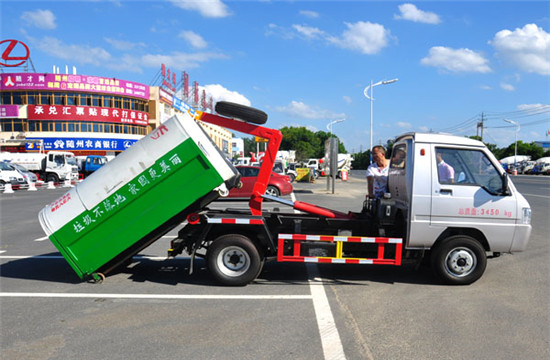

| more Picture: |
| ※ Need more information or pictures?please contact us and we will provide best service!。 |
